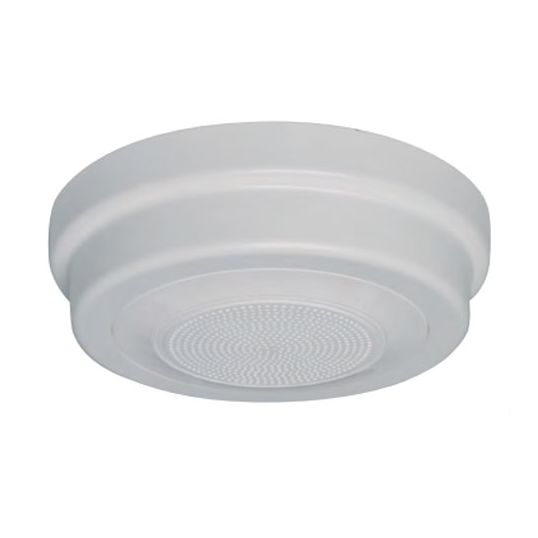

One-shot Fire Speaker 100 Volt 95 dB (5 Watt at 1 mtr)/83dB (5 Watt at 4 mtr) Surface ABS Plastic White

Description

Fire Speaker, 100 Volt, 100 Hz-15 kHz, 95 dB (5 Watt at 1 mtr)/83 dB (5 Watt at 4 mtr), <95% RH Humidity, Surface Mounting, ABS, White, -25 to 55 deg C, 210 mm Diameter x 67 mm Height, 100 mm Paper Cone Speaker/5 Watt (100 Volt Line)

Key Specifications

SKU	ONSCF0703
Brand	One-shot
Product Type	Fire Speakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems Excellent speech intelligibility High quality speaker driver developed for BGM, paging and emergency warning applications Patented 2 way latching system reduces installation time Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards Fitted with supervisory capacitor for line monitoring
Standard Pack Size	12
UNSPSC Class	46191500
UOM	EA
Vendor Product	CF0703
Colour	White
Dimensions	210 mm Diameter x 67 mm Height
Frequency	100 Hz-15 kHz
Humidity	<95% RH
Material	ABS
Mounting Method	Surface
Please Note	100 mm Paper Cone Speaker/5 Watt (100 Volt Line)
Temperature	-25 to 55 deg C
Sound Level	95 dB (5 Watt at 1 mtr)/83 dB (5 Watt at 4 mtr)
Voltage	100 Volt
