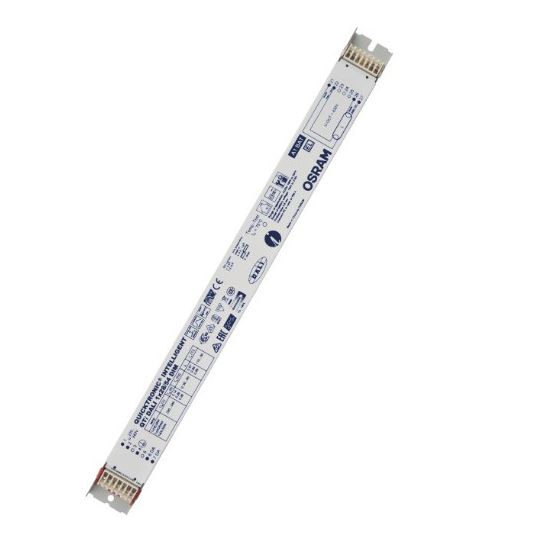

Osram Electronic Ballast DALI 220/240V T5 IP20 360mm F/1x28-54W T5 Lamps Class I Fixtures

Description

Electronic Ballast DALI, T5, 220/240 Volt, 50/60 Hz, Dimmable. IP20, For Use With: 1 x 28-54 Watt T5 Lamps, Class I Fixtures, 10 to 50 deg C, 21 mm Height, 30 mm Width, 360 mm Length

Key Specifications

Barcode (EAN-13)	4050300870809
SKU	OSRQTIDALI1X28/54
Brand	Osram
Range Name	Quicktronic Intelligent
Product Type	Electronic Ballast

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Control via the DALI interface Compliance with the DALI Version-1 and IEC 60929 Control input protected against overvoltage and polarity reversal (OSRAM ECG) Manual dimming without controller and with standard switches Including memory function (double click) and soft start Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100 Installation in emergency lighting systems according to IEC 61347-2-3, appendix J Easy integration in luminaire thanks to same dimensions like DALI GI ECG TouchDIM function for easy and inexpensive dimming of several ECGs Same luminous flux with direct and alternating current
Standard Pack Size	20
UNSPSC Class	39101900
UOM	EA
Vendor Product	4050300870809
Dimmable	Dimmable
Frequency	50/60 Hz
For Use With	1 x 28-54 Watt T5 Lamps/Class I Fixtures
Height	21mm
IP Rating	IP20
Lamp Type	T5
Temperature	10 to 50 deg C
Voltage	220-240 Volt
Width	30mm
