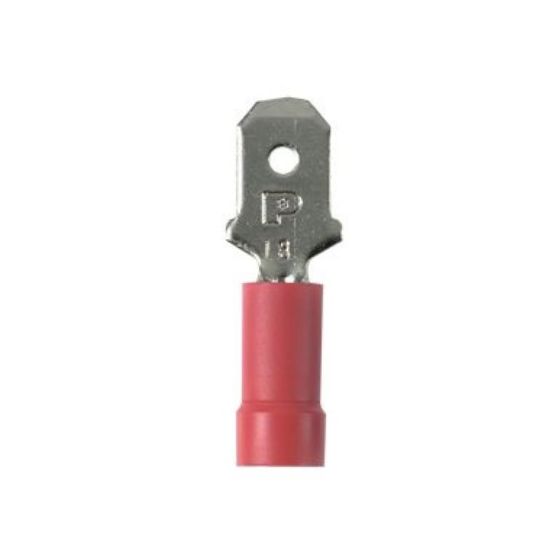

Panduit Quick Connect Male Insulated Double Grip 0.5-1mm 6.3mm Tab Red Vinyl

Description

QC Terminal, male, Insulated, Double Grip, Conductor Size: 0.5-1 mm, Tab Size: 6.3mm, Wire Strip Length: 7.1mm, Seam Type: Brazed, 600 Volt Maximum, Flammability: V0, Crimping Die: CT-1525, CT-2300/ST, CT-2500/L, Mounting Method: Free Hanging, Base Material: Brass, Conductive Material: Copper, Insulation Material: Vinyl, Red Insulation, Nickel Plated Finish, 105 deg C, Max. Wire Insulation Diameter: 3.9mm, 24.9mm Length, 6.3mm Width, Thickness: 8mm, 25 Pack

Key Specifications

SKU	PANEDV18-250M-Q
Brand	Panduit
Range Name	StrongHold
Product Type	Quick Connect Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	EDV18-250M-Q
Base Material	Brass
Conductive Material	Copper
Crimping Die	CT-1525 CT-2300/ST CT-2500/L
Finish	Nickel Plated
Insulation Colour	Red
Insulation Material	Vinyl
Mounting Method	Free Hanging
Pack Size	25 Pack
Seam Type	Brazed
Tab Size	6.3 mm
Thickness	8 mm
Temperature	105 deg C
Voltage Rating	600 Volt
Width	6.3 mm
Wire Strip Length	7.1 mm
Wire Insulation Diameter	3.9 mm
