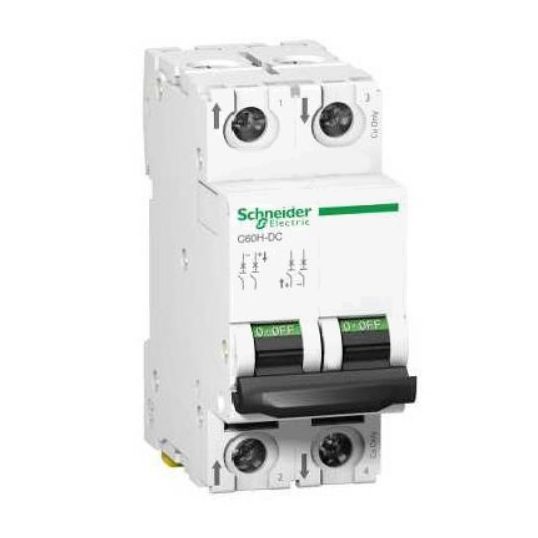

Schneider Miniature Circuit Breaker For DC C Curve 2Module 6kA 500VDC 2P 36mm DIN Rail
Loading...
Description
Miniature Circuit Breaker DC C Curve, 500 Volt, 6 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 2 Module 36 mm, 2 Pole, Toggle Actuator, 2.5 Nm Top/Bottom Tightening Torque, 3000/6000 Cycles Electrical Life, DIN Rail Mounting, White, 25 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
3606480424267
|
|---|---|
| SKU |
SHNA9N61526
|
| Brand |
Schneider
|
| Range Name |
Acti 9 iC60H
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9N61526 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 6 Amp |
| Electrical Life | 3000/6000 Cycles |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 6 kA |
| Modules | 2 Module 36 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Temperature | 25 to 70 deg C |
| Tightening Torque | 2.5 Nm |
| Voltage | 500 Volt |
