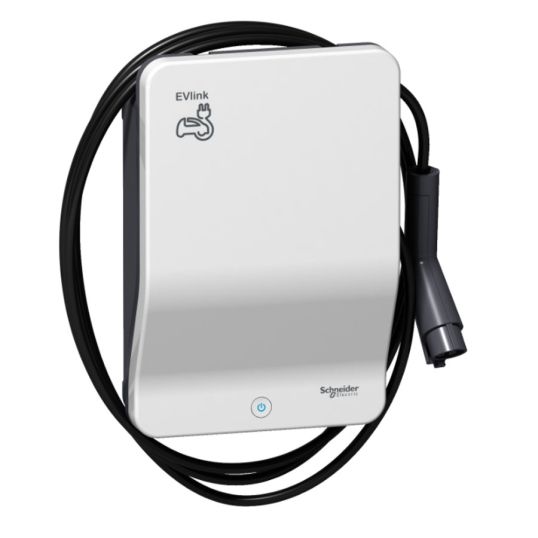

Schneider Evlink Smart Wall Box 7.4kW Attached Cable T2 Key

Description

Smart Wall Box, 220-240 Volt AC, 220-240 Volt Output Voltage, 32 Amp Output Current, 50/60 Hz, 7.4 kW Power Output, OCPP 1.6 Communication Protocol, RS485 For Metering Modbus, 3x RJ45 for Ethernet LAN, IP54, IK10, White (RAL 9003), Grey (RAL 7016), 480 mm Height, 330 mm Width, 170 mm Depth, -30 to 50 deg C, -40 to 80 deg C Storage Temperature, 5-95% Relative Humidity, CE, CB, RCM, IEC 62196-2, IEC 61851-1, IEC 61851-22, IEC 62196-1, 7.7 kg Weight

Key Specifications

Barcode (EAN-13)	3606480935282
SKU	SHNEVB1A7PCKI
Brand	Schneider
Range Name	Evlink
Product Type	AC/DC Charging Station

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	EVB1A7PCKI
Communication Port	OCPP 1.6
Depth	220 mm
Height	1146 mm
IK Rating	IK10
Input Voltage	230 Volt AC/380-415 Volt AC
Input Frequency	50/60 Hz
IP Rating	IP54
Operating Temperature	-30 to 50 deg C
Phase	1/3 Phase
Power Output	22 kW
Relative Humidity	0-95%
Standards	IEC 61851-22; IEC 61851-1
Width	413 mm
Storage Temperature	-40 to 80 deg C
