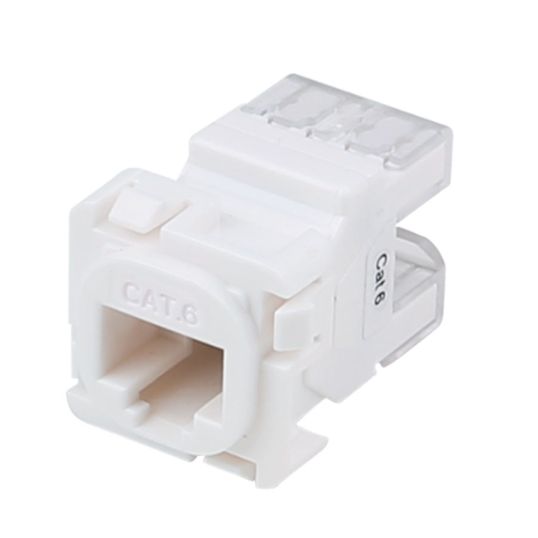

SharkRack Australian Style Jack RJ45 Cat6A White

Description

Unshielded Keystone Jack, 23 AWG, RJ45 Connector, Cat 6A, <500 MOhm Insulation Resistance, <2 MOhm Contact Resistance, 350 MHz Frequency Bandwidth, Phosphor Bronze Contact Base, Gold Plated Contact Plating, White, 53.5 mtr Length, 31.3 mm Width, 23.4 mm Height

Key Specifications

Barcode (EAN-13)	6930585203883
SKU	SHRDKJC6AUAWH
Brand	SharkRack

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The bandwidth of up to 350 MHz, supports 568A and 568B Gold needles are wear-resistant and have good elasticity 180 degree wire bonding Parts are made from high strength PC materials Cap is designed to ensure continuous contact of the cable and IDC contact point
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	DKJC6AUAWH
Cable Type	Cat 6A
Colour	White
Conductor Size	23 AWG
Connector	RJ45
Contact Plating Material	Gold Plated
Contact Base Material	Phosphor Bronze
Contact Resistance	<2 MOhm
Frequency Bandwidth	350 MHz
Height	23.4 mm
Insulation Resistance	<500 MOhm
Product Type	simple
Width	31.3 mm
