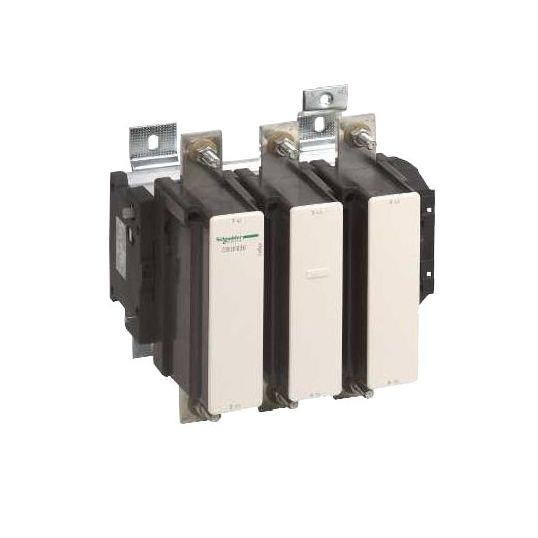

Schneider Contactor General Purpose 3 Pole 450kW 800A AC3 1000A AC1 110-400V Less Coil Base/Plate Mount
Loading...
Description
Contactor General Purpose, 110-400/100-250 Volt AC, 110-400/100-380 Volt DC, AC3 Rating (kW): 450, AC3 Rating (Amps): 800, AC1 Rating (Amps): 1000, 440 Volt AC, 3 Pole, Screw Clamp, Base Mount/Plate, IP20, -5 to 55 deg C, 304 mm Height, 309 mm Width, 255 mm Depth, Less Coil
Key Specifications
| Barcode (EAN-13) |
3389110747072
|
|---|---|
| SKU |
TEELC1-F800
|
| Brand |
Schneider
|
| Range Name |
TeSys Model F
|
| Product Type |
Contactors General
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1F800 |
| AC1 Rating (Amps) | 1000 Amp AC1 |
| AC3 Rating (Amps) | 800 Amp AC3 |
| AC3 Rating (kW) | 450 kW |
| Contact Voltage | 440 Volt AC |
| Depth | 255 mm |
| Height | 304 mm |
| IP Rating | IP20 |
| Mounting Method | Base Plate |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 100-400 Volt AC/110-400 Volt DC |
| Please Note | Less Coil |
| Temperature | -5 to 55 deg C |
| Terminal Connection | Screw Clamp |
| Width | 309 mm |
