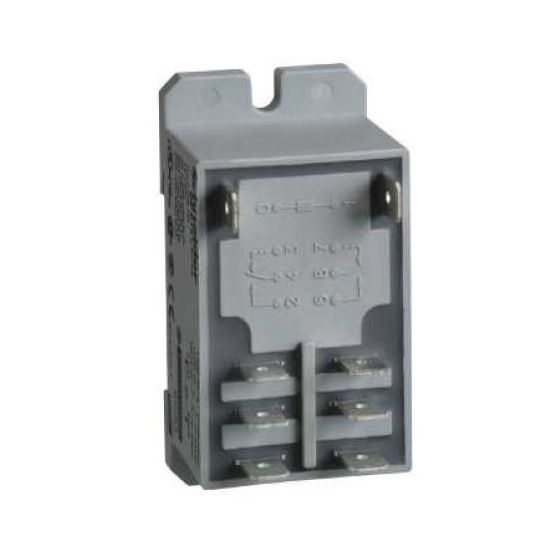

Schneider Power Relay DIN Rail Mounting 2NO 30A 24VDC Flat

Description

Power Relay DIN Rail Mounting, 24 Volt DC, 30 Amp Flat, 2NO, 350 Ohm, Operating Time: 25 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, DIN Rail Mount/Panel, Plug-In, Silver Tin Oxide, -40 to 55 deg C, 68.5 mm Height, 33.7 mm Width, 39.2 mm Depth

Key Specifications

Barcode (EAN-13)	3389119401531
SKU	TEERPF-2ABD
Brand	Schneider
Range Name	Zelio RPF
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Without LED, test switch
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RPF2ABD
Contact Configuration	2 Normally Opened
Depth	39.2 mm
Height	68.5 mm
IP Rating	IP40
Current	30 Amp
Mounting Method	Din Rail/Panel/Plug-In
Contact Material	Silver Tin Oxide
Operating Coil Voltage	24 Volt DC
Operating Cycles	<=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load
Operating Time	25 ms
Resistance	350 Ohm
Temperature	-40 to 55 deg C
Width	33.7 mm
