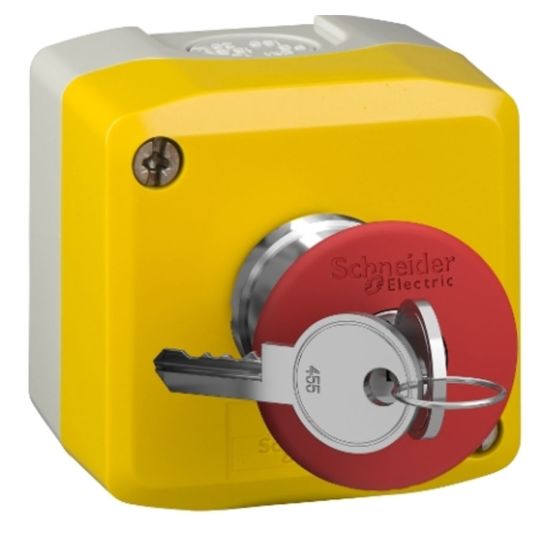

Telemecanique Emergency Stop Operator 40mm Plastic Complete Key to Release Action 1N.C Red 22mm

Description

Emergency Stop Operator, 600 Volt, 10 Amp, Mushroom Actuator Head, 1 Normally Closed Configuration, Turn To Release Reset Method, Trigger Action and Mechanical Latching Operator, Key to Release Operator Action, 300000 Cycles, 0. 8-1.2 Nm Tightening Torque, Screw/Clamp Terminal, Panel Mounting, 22 mm Mounting Hole Diameter, IP66/67/69/69K, NEMA 13/4X, Polycarbonate Housing, Silver Alloy (Ag/Ni) Contact, Red, -40 to 70 deg C, 40 mm Diameter

Key Specifications

Barcode (EAN-13)	3389119048095
SKU	TEEXAL-K188
Brand	Telemecanique
Product Type	Push Buttons Complete

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XALK188
Actuator Head	Mushroom
Contact Configuration	1 Normally Closed
Colour	Red
Current	10 Amp
Contact Material	Silver Alloy (Ag/Ni)
Diameter	40 mm
Housing Material	Polycarbonate
IP Rating	IP66/67/69/69K
Mounting Hole Diameter	22 mm
NEMA Rating	NEMA 13/4X
Mounting Method	Panel
Operating Cycles	300000 Cycles
Operator Type	Trigger Action and Mechanical Latching
Operator Action	Key to Release
Reset Method	Turn To Release
Tightening Torque	0. 8-1.2 Nm
Voltage	600 Volt
Temperature	-40 to 70 deg C
Terminal Connection	Screw/Clamp
