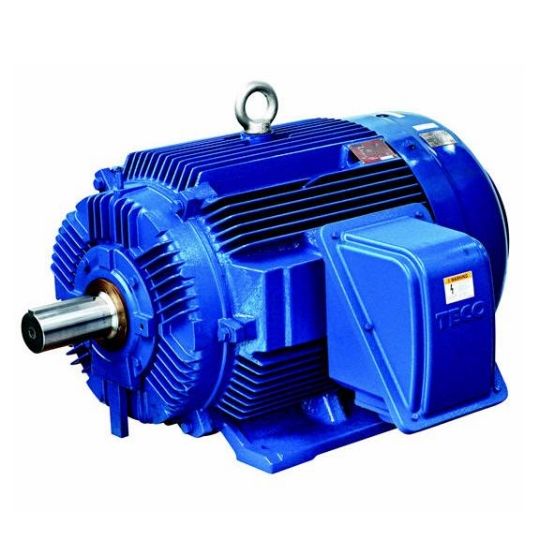

Teco Electric Motor Squirrel Cage Induction Mine Spec 6P 3kW 3Ph 380/415V Shaft 38mm D132S Frame Flange Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 380/415 Volt AC, 6.03 Amp, 4 HP, 50 Hz, 3 Phase, 970 rpm, 3 kW Output, 6 Pole, IP66, Frame: D132S, 38 mm Shaft, Rotation: Bi Directional-Low Noise, Power Factor: 78 at 100% Load, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Direct On Line Starting, Soft Starter/VVVF Duty, Torque: 29.5 N/m, Flange Mounting, Insulation Class: Class H, Efficiency: 88.8 at 100% Load, Cast Iron Frame, Finish: Orange Paint, 55 deg C, 454 mm Length

Key Specifications

SKU	TEO013/H0003DD6R
Brand	Teco
Range Name	Max E3 Mining
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled High efficiency motors True IP66 with porous drain plugs Class H insulation system Superior inverter rated insulation (8500 V/microsecond) Precision and rugged cast iron construction including fan Typical temperature rise less than Class E 1.2 service factor at 40 deg C ambient Suitable for 60 deg C ambient at rated output TECO renowned grease relief system
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	013/H0003DD6R
Bearing Type	Ball
Colour	Orange
Current	6.03 Amp
Efficiency	88.8 at 100% Load
Frame	Size D132S
Frame Material	Cast Iron
Frequency	50 Hz
Horsepower	4 kW
IP Rating	IP66
Mounting Method	Flange
Insulation Class	Class H
Number Of Poles	6 Pole
Output	3 kW
Phase	3 Phase
Rotation	Bi Directional-Low Noise
Power Factor	78 at 100% Load
Shaft Size	38 mm
Speed	970 rpm
Service Factor	1/1.15 p.u at Class B/F
Starting Method	DOL, Soft Starter/VVVF Duty
Temperature	55 deg C
Torque Rating	29.5 N/m
Voltage	380-415 Volt AC
