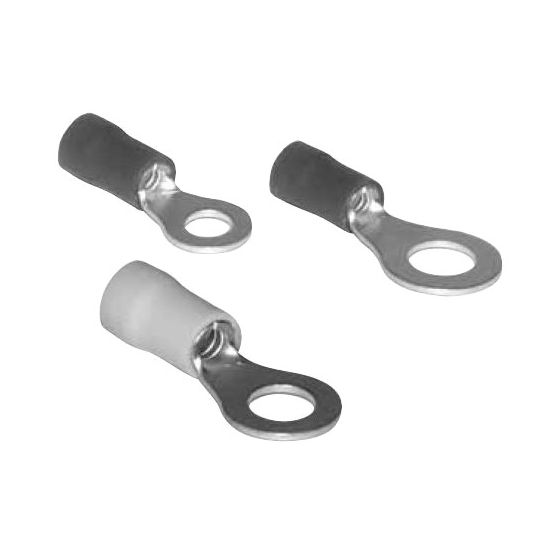

Utilux Ring Terminal Insulated Double Grip 1.5-2.5mm M5 Stud Blue 22.3mm OAL

Description

Ring Terminal Insulated Double Grip, 1.5-2.5 mm, M5 Stud, 16-14 AWG Terminal Size, Serrated Barrel Type, 10.5 mm Barrel Length, 12C/12B/76B/63-4U/102/120, Copper Body, Blue Insulation, 4.3 mm Insulation Diameter, Tin Electroplated, 22.3 mm Overall Length, 9.5 mm Lug Width, 0.8 mm Lug Thickness, 5.3 mm Lug Inside Diameter, 100 Pack

Key Specifications

Barcode (EAN-13)	9313988011786
SKU	UTIH4226/100
Brand	Utilux
Range Name	UtiLug SuperGrip
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fitted with a copper ferrule and pre-insulated for secure insulation support Copper electro tinned to minimise corrosion Serrated barrel provides secure mechanical and electrical connection
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	UTIH4226/100
Barrel Length	10.5 mm
Barrel Type	Serrated
Body Material	Copper
Conductor Size	1.5-2.5mm
Crimping Die	12C/12B/76B/63-4U/102/120
Finish	Tin Electroplated
Insulation Diameter	4.3 mm
Insulation Colour	Blue
Lug Inside Diameter	5.3 mm
Lug Thickness	0.8 mm
Lug Width	9.5 mm
Pack Size	100 Pack
Overall Length	22.3 mm
Stud Size	M5
Terminal Size	16-14 AWG
