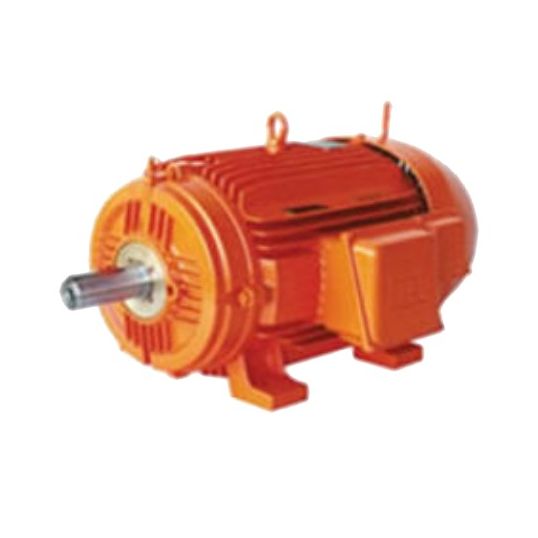

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 250kW 3Ph 415V 355M/L Frame Foot/Flange B35R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 420 Amp, 340 HP, 50 Hz, 3 Phase, 1488 rpm, 250 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 355M/L, 100 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.86, Service Factor: 1, Roller Bearing, Direct On Line Starting, Torque: 164 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 96.2%, Cast Iron Frame, Carbon Steel SAE 4140 Shaft, -20 to 40 deg C, 1482 mm Length x 956 mm Width x 885 mm Height

Key Specifications

SKU	WEGLTE58PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	LTE58PHEM
Bearing Type	Roller
Current	420 Amp
Duty Cycle	S1
Efficiency	96.2%
Enclosure Type	IC411-TEFC
Frame	Size 355M/L
Frame Material	Cast Iron
Frequency	50 Hz
Height	885 mm
Horsepower	340 kW
IP Rating	IP66
Mounting Method	Foot/Flange
Insulation Class	Class H
Number Of Poles	4 Pole
Output	250 kW
Phase	3 Phase
Rotation	Both (CW and CCW)
Power Factor	0.86
Shaft Size	100 mm
Shaft Material	Carbon Steel SAE 4140
Speed	1488 rpm
Service Factor	1
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	164 kgfm
Voltage	415 Volt AC
Width	956 mm
