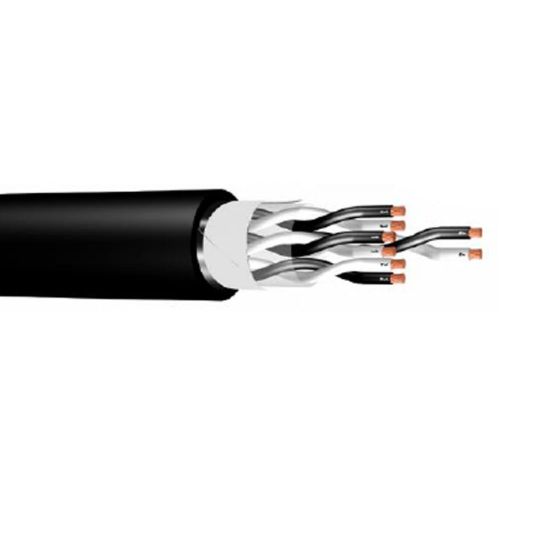

WWC 1.5mm 4 Pair Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 4 Pair, 7/0.5 mm Strands, Overall Screened Screen, 12.2 mm Overall Diameter, 154 mm During Installation/102 mm After Installation Bend Radius, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 0.4 mm Insulation Thickness, 100% Screen Coverage, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, Black/White Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464

Key Specifications

SKU	WWC5004
Brand	WWC
Range Name	Machlink Type 110
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5004
Conductor Size	1.5 mm
Conductor Resistance	13.6 Ohm/km
Conductor Type	Class 2 Annealed Copper
Bend Radius	154 mm During Installation/102 mm After Installation
Core Colours	Black/White
Insulation Resistance	140 MOhm/km
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Number of Pairs	4 Pair
Overall Diameter	12.2 mm
Screen Coverage	100%
Screen Material	Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire
Sheath Colour	Black
Screen Format	Overall Screened
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
Stranding	7/0.5 mm
Voltage	110 Volt AC/150 Volt DC
Temperature	-25 to 75 deg C
